The maximum input voltage that can be applied to the TPS546C23RVFT is 17V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor with a low ESR, and ensure that the input voltage is within the recommended range. Additionally, the output voltage can be adjusted using the FB pin, and the device has a built-in soft-start feature to prevent output voltage overshoot during startup.
The TPS546C23RVFT is capable of delivering up to 3A of output current. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to ensure that the device is operated within its recommended operating conditions to ensure reliable operation.
Thermal management is critical for the reliable operation of the TPS546C23RVFT. Ensure that the device is mounted on a suitable heat sink, and the PCB layout is designed to minimize thermal resistance. The device has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. It's essential to follow the recommended thermal design guidelines to ensure reliable operation.
When designing the PCB layout for the TPS546C23RVFT, it's essential to follow the recommended layout guidelines to minimize noise, ensure signal integrity, and reduce electromagnetic interference (EMI). Keep the input and output capacitors close to the device, use a solid ground plane, and ensure that the high-current paths are short and wide to minimize resistance and inductance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS546C23RVFT Overview

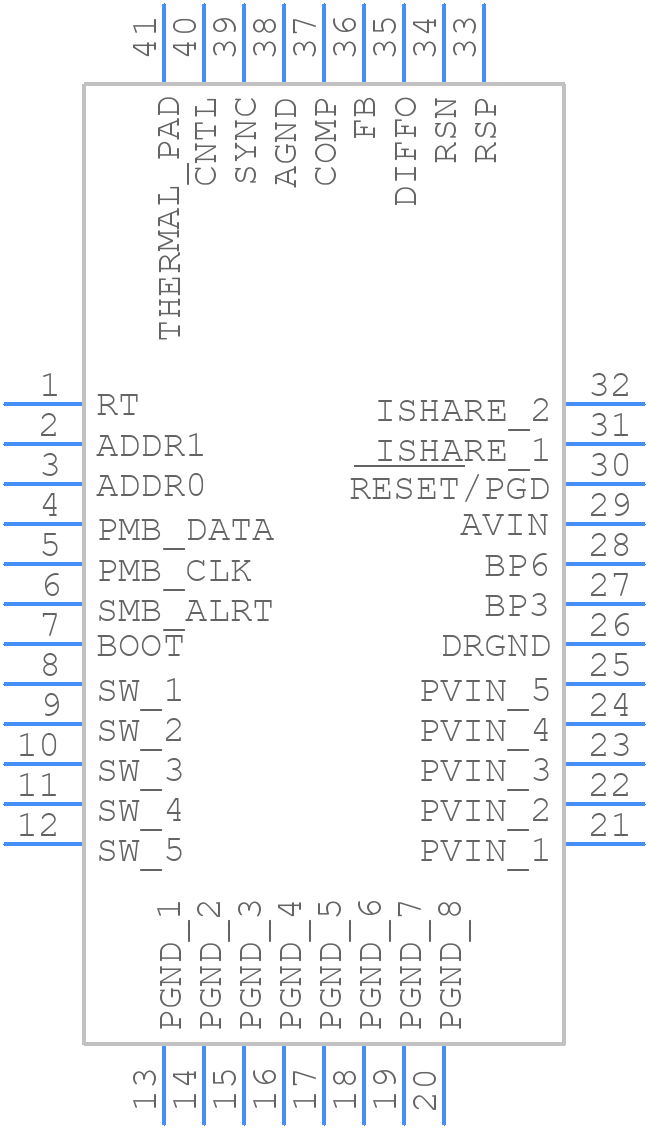

Use the download button to access the TPS546C23RVFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
