The maximum input voltage that can be applied to the TPS549B22RVFT is 22V, as specified in the datasheet. However, it's recommended to derate the input voltage to 20V to ensure reliable operation and to prevent damage to the device.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be selected based on the input voltage and current requirements.
The maximum output current that the TPS549B22RVFT can deliver is 2A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
The TPS549B22RVFT has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To handle thermal management, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and ensure good airflow around the device.
The EN (enable) pin on the TPS549B22RVFT is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS549B22RVFT Overview

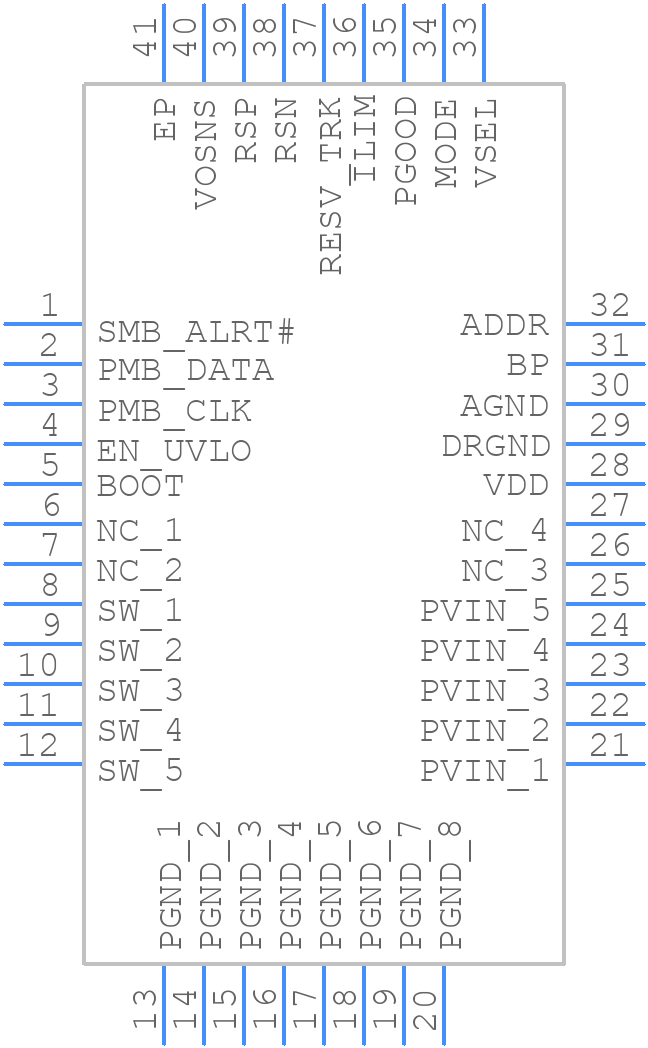

Use the download button to access the TPS549B22RVFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS54,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
