The maximum input voltage that can be applied to the TPS54JA20RWWR is 18V, but it's recommended to operate within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a sufficient output capacitor (at least 10uF), and ensure that the input voltage is within the recommended range. Additionally, the output voltage can be adjusted using the FB pin, and the EN pin can be used to enable or disable the device.
The TPS54JA20RWWR can deliver up to 2A of output current, but it's recommended to operate within the recommended output current range of 0.5A to 1.5A for optimal performance and reliability.
To protect the TPS54JA20RWWR from overheating, ensure that the device is operated within the recommended temperature range of -40°C to 125°C, and that the thermal pad is properly connected to a heat sink or a thermal relief pattern on the PCB. Additionally, ensure that the device is not operated at maximum output current for extended periods.
Yes, the TPS54JA20RWWR is suitable for high-reliability applications, such as automotive, industrial, and medical devices. However, it's essential to follow the recommended design guidelines, and to ensure that the device is operated within the recommended specifications and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS54JA20RWWR Overview

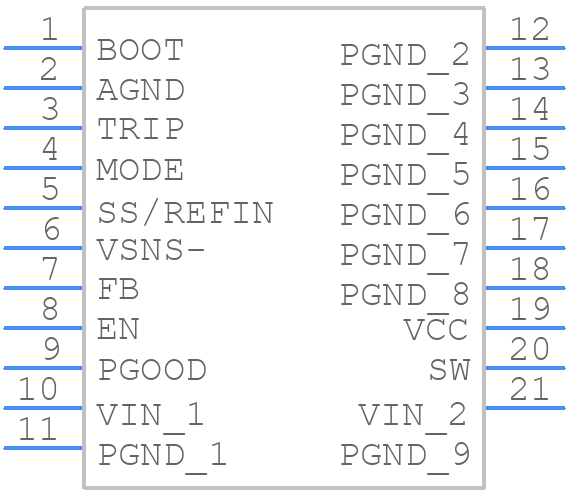

Use the download button to access the TPS54JA20RWWR schematic symbol, PCB footprint, and 3D model.
