SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
2000 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS55160QPWPRQ1 Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS55160QPWPRQ1 is 18V, but it's recommended to operate within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
The TPS55160QPWPRQ1 can deliver up to 6A of output current, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
The output voltage of the TPS55160QPWPRQ1 can be programmed using an external resistor divider network connected to the FB pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS55160QPWPRQ1 Overview

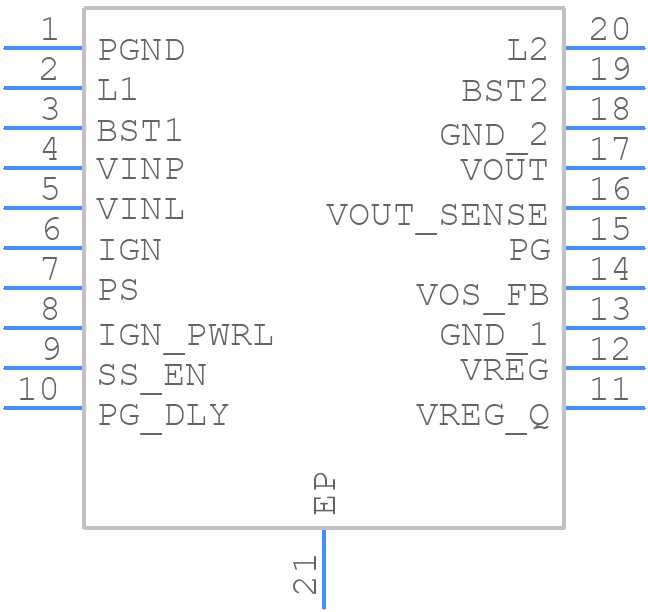

Use the download button to access the TPS55160QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
