TPS566231RQFR - Texas Instruments

Description: CAN Interface IC 3-V to 18-V input, 6-A synchronous step-down voltage regulator with pulse skip mode 9-VQFN-HR -40 to 125

Download TPS566231RQFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

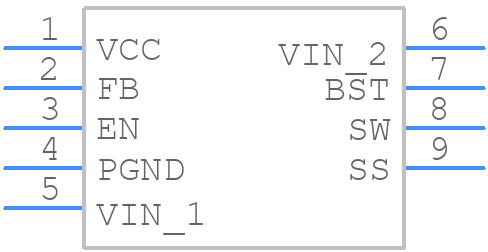

Symbol
TPS566231RQFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS566231RQFR - Texas Instruments PCB footprint - Other - Other - RQF0009A
click to zoom
3D Models
TPS566231RQFR - Texas Instruments - 3D model - Other - RQF0009A
click to zoom

TPS566231RQFR Details

  • Manufacturer Part Number:

    TPS566231RQFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-06-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N9

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC9,.6X.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

TPS566231RQFR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS566231RQFR is 18V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value to filter out any noise and ripple.
  • The TPS566231RQFR can deliver up to 3A of output current, depending on the input voltage and output voltage settings. However, it's essential to ensure that the device is operated within its thermal limits to prevent overheating and maintain reliability.
  • The output voltage of the TPS566231RQFR can be programmed using an external resistor divider network connected to the FB pin. The datasheet provides a formula to calculate the required resistor values based on the desired output voltage.
  • The EN (enable) pin on the TPS566231RQFR is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
