The maximum input voltage that can be applied to the TPS566235RJNR is 18V, but it's recommended to operate within the recommended input voltage range of 4.5V to 15V for optimal performance.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the recommended range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage tolerance can be improved by using a voltage reference IC.
The maximum output current that the TPS566235RJNR can deliver is 3A, but it's recommended to operate within the recommended output current range of 0.5A to 2A for optimal performance and to prevent overheating.
To protect the TPS566235RJNR from overheating, ensure that the device is operated within the recommended temperature range of -40°C to 125°C, and that the thermal pad is properly connected to a heat sink or a thermal pad on the PCB. Additionally, ensure that the output current is within the recommended range, and that the input voltage is within the recommended range.
Yes, the TPS566235RJNR is suitable for high-reliability applications, such as automotive, industrial, and medical devices. However, it's essential to follow the recommended design guidelines, and to ensure that the device is operated within the recommended specifications to ensure reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS566235RJNR Overview

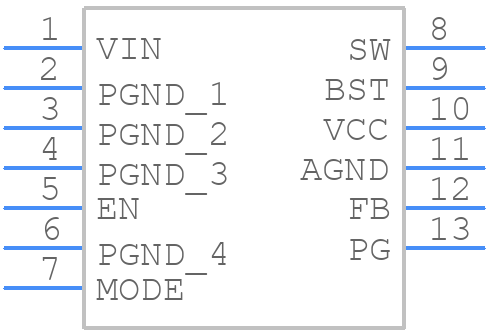

Use the download button to access the TPS566235RJNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS56,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
