TPS566238RQFR - Texas Instruments

Description: Switching Voltage Regulators 3-V to 18-V input, 6-A synchronous step-down regulator with forced continuous conduction mode 9-VQFN-HR -40 to 125

Download TPS566238RQFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

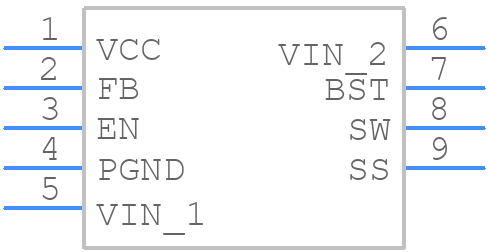

TPS566238RQFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS566238RQFR - Texas Instruments PCB footprint - Other - Other - TPS566238RQFR-3
click to zoom
3D Models
TPS566238RQFR - Texas Instruments - 3D model - Other - TPS566238RQFR-3
click to zoom

TPS566238RQFR Details

  • Manufacturer Part Number:

    TPS566238RQFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-06-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N9

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC9,.6X.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

TPS566238RQFR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS566238RQFR is 18V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value to filter out any noise and ripple.
  • The maximum output current that the TPS566238RQFR can deliver is 3A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
  • To protect the TPS566238RQFR from overheating, ensure that the device is operated within the recommended operating temperature range of -40°C to 125°C. Also, provide adequate heat sinking and thermal management to keep the junction temperature below the maximum rating of 150°C.
  • Yes, the TPS566238RQFR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
