Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The datasheet provides guidelines for capacitor selection, but it's also important to consider factors such as capacitor type (e.g. ceramic, electrolytic), voltage rating, and ESR (equivalent series resistance). A good rule of thumb is to choose capacitors with a voltage rating at least 1.5x the input voltage and an ESR that meets the datasheet's recommended maximum value.
The datasheet specifies an operating junction temperature range of -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. As a general rule, it's recommended to derate the device's power dissipation at higher ambient temperatures to ensure reliable operation.
Yes, the TPS566250DDAR is qualified to AEC-Q100, which makes it suitable for automotive applications. However, it's still important to review the device's reliability and qualification data, as well as perform thorough testing and validation, to ensure it meets the specific requirements of the application.
Troubleshooting issues with the TPS566250DDAR often requires a systematic approach, including reviewing the PCB layout, checking component values and tolerances, and using oscilloscope measurements to identify the root cause of the issue. Texas Instruments also provides application notes and technical support resources to help with troubleshooting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS566250DDAR Overview

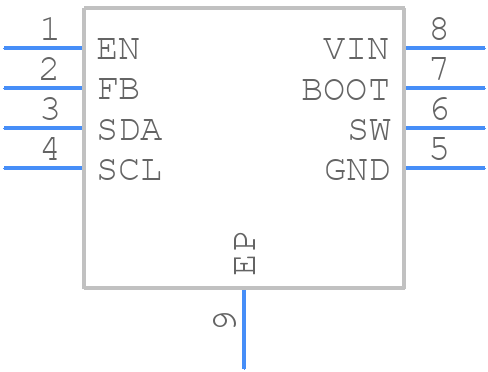

Use the download button to access the TPS566250DDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS56,
or try a keyword search, such as Switching Regulator or Controllers
