TPS56720PWP - Texas Instruments

Description: Conv DC-DC 4.5V to 17V Step Down Single-Out 0.6V to 1.87V 7A 20-Pin HTSSOP EP Tube

Download TPS56720PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

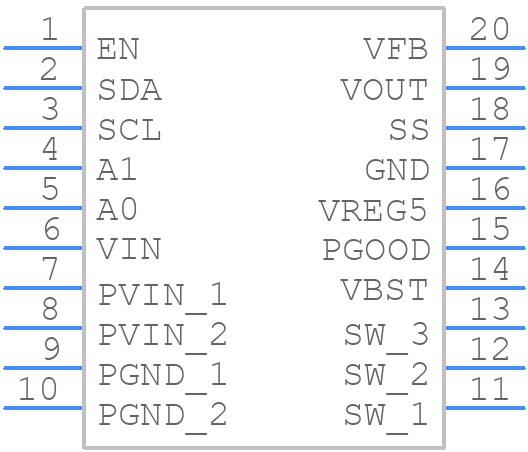

TPS56720PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS56720PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP(R-PDSO-G20)
click to zoom
3D Models
TPS56720PWP - Texas Instruments - 3D model - Small Outline Packages - PWP(R-PDSO-G20)
click to zoom

TPS56720PWP Details

  • Manufacturer Part Number:

    TPS56720PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OUTPUT VOLTAGE RANGE 0.6 TO 1.87V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7 A

  • Output Voltage-Max:

    1.87 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    1.15 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS56720PWP Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS56720PWP is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The minimum input voltage required for the TPS56720PWP to operate is 2.7V, but it's recommended to keep it above 3V for optimal performance and to ensure that the output voltage remains within the specified tolerance.
  • The TPS56720PWP is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the device is properly cooled to prevent overheating. Additionally, the device's performance and reliability may be affected at high temperatures, so it's recommended to consult the datasheet and application notes for more information.
  • The output voltage of the TPS56720PWP can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. The output voltage can be adjusted by changing the values of R1 and R2.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS56720PWP Overview

Use the download button to access the TPS56720PWP schematic symbol, PCB footprint, and 3D model.
