TPS568230RJER - Texas Instruments

Description: 4.5-V to 18-V input, 8-A synchronous step-down voltage regulator

Download TPS568230RJER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

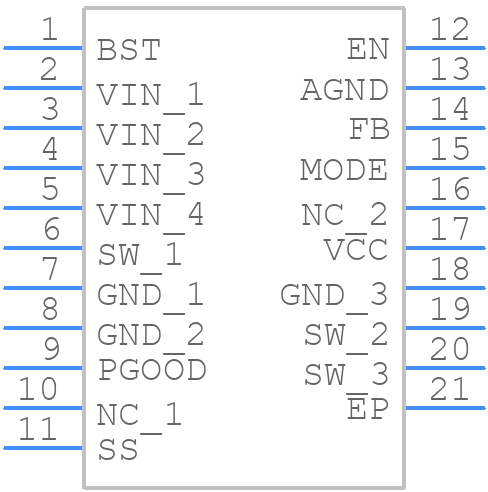

TPS568230RJER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS568230RJER - Texas Instruments PCB footprint - Other - Other - RJE0020A_2022
click to zoom
3D Models
TPS568230RJER - Texas Instruments - 3D model - Other - RJE0020A_2022
click to zoom

TPS568230RJER Details

  • Manufacturer Part Number:

    TPS568230RJER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-03-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.11SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS568230RJER Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS568230RJER is 18V, but it's recommended to operate within the recommended input voltage range of 4.5V to 15V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to use the recommended output capacitor value and type, and to follow the layout guidelines provided in the datasheet. Additionally, the input capacitor should be placed close to the VIN pin to minimize noise and ensure stability.
  • The TPS568230RJER can deliver up to 3A of output current, but it's recommended to operate within the recommended output current range of 1A to 2A for optimal performance and to prevent overheating.
  • The TPS568230RJER has an adjustable output voltage, which can be set using the FB pin and an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 / R2 + 1), where R1 and R2 are the resistors in the divider network.
  • The thermal shutdown temperature of the TPS568230RJER is typically around 150°C to 160°C, but it's recommended to operate the device within the recommended operating temperature range of -40°C to 125°C to prevent overheating and ensure reliable operation.
