Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the TI application note 'TPS56838RPAR PCB Layout Guidelines' (SLVAE67) for optimal performance.
The input capacitor should be selected based on the input voltage ripple, output current, and operating frequency. A general guideline is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 times the input voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum output current of the TPS56838RPAR is 3A, but it's limited by the thermal performance of the package and the PCB. The actual output current may be lower depending on the operating conditions and thermal design.
The TPS56838RPAR is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's recommended to follow the thermal design guidelines in the datasheet and application notes to ensure reliable operation in high-temperature environments.
TI provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage regulation, output current limiting, and thermal shutdown. Additionally, TI's website has a wealth of resources, including application notes, FAQs, and forums, where engineers can seek help from TI experts and other users.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS56838RPAR Overview

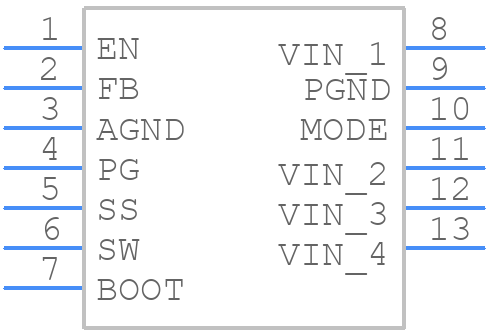

Use the download button to access the TPS56838RPAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS56,
or try a keyword search, such as Switching Regulator or Controllers
