For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, ensure that the thermal vias are placed under the IC to provide a thermal path to the ground plane.
When selecting an input capacitor, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). A capacitor with a voltage rating of at least 1.5 times the maximum input voltage is recommended. A capacitance value of 10-22 μF is suitable for most applications, and an ESR of less than 100 mΩ is recommended.
A ceramic output capacitor with a value of 10-22 μF and a voltage rating of at least 1.5 times the output voltage is recommended. X5R or X7R dielectric capacitors are suitable for most applications. Avoid using electrolytic capacitors as they may cause oscillations.
To ensure stability, follow the recommended PCB layout guidelines, use a sufficient output capacitor value, and ensure that the input and output capacitors are placed close to the IC. Additionally, avoid using long traces and minimize the loop area of the power stage to prevent oscillations.
The maximum ambient temperature for the TPS57114MRTETEP is 85°C. However, the device can operate at higher temperatures with derating. Refer to the datasheet for the thermal derating curve.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS57114MRTETEP Overview

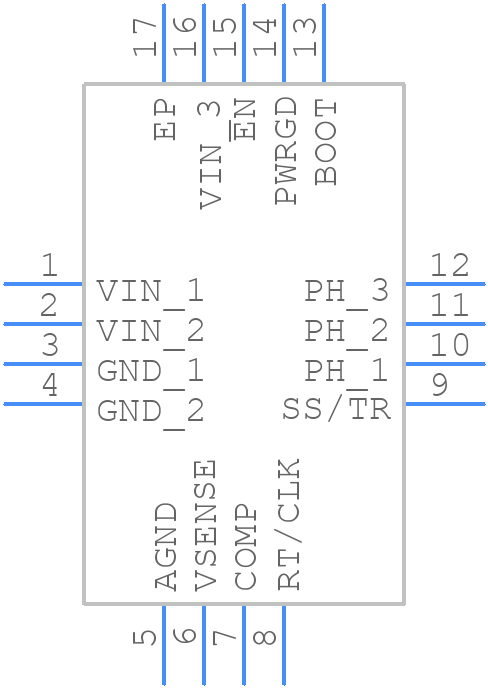

Use the download button to access the TPS57114MRTETEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS57,
or try a keyword search, such as Switching Regulator or Controllers
