TPS60101PWP - Texas Instruments

Description: Regulated 100mA, 3.3V high power low noise charge pump DC/DC converter

Download TPS60101PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

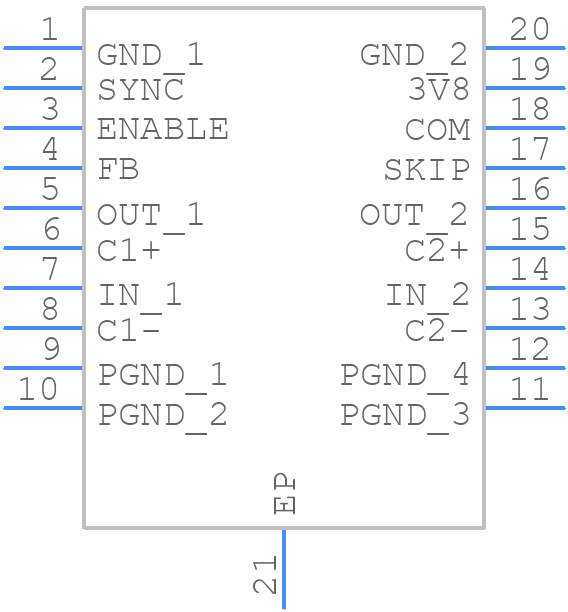

TPS60101PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60101PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP(R-PDSO-G20)_A
click to zoom
3D Models
TPS60101PWP - Texas Instruments - 3D model - Small Outline Packages - PWP(R-PDSO-G20)_A
click to zoom

TPS60101PWP Details

  • Manufacturer Part Number:

    TPS60101PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    2 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS60101PWP Frequently Asked Questions (FAQs)

  • The recommended layout for the TPS60101PWP involves placing the input and output capacitors close to the device, using short and wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is recommended. The output capacitor should also have a low ESR and be rated for the output voltage. A 10uF to 22uF ceramic capacitor is recommended. The capacitor values can be adjusted based on the specific application requirements.
  • The TPS60101PWP can operate at ambient temperatures up to 85°C. However, the device's junction temperature should not exceed 125°C. The device's thermal performance can be improved by using a heat sink or a thermal pad.
  • To ensure stability, the TPS60101PWP requires a minimum output capacitance of 10uF. The output capacitor should also have a low ESR. Additionally, the device's feedback loop should be properly compensated using the recommended component values. The device's stability can be verified by checking the output voltage ripple and noise.
  • Yes, the TPS60101PWP is a high-reliability device that is suitable for use in automotive, industrial, and medical applications. The device is built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability.
