SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
DOUBLER INVERTER
Switching Frequency-Max:
400 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS60110PWPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the TPS60110PWPG4 datasheet, which includes guidelines for component placement, PCB routing, and thermal management. Additionally, the TI website provides a layout guide document (SLUU323) that provides more detailed information on layout and placement best practices.
To optimize the output voltage accuracy of the TPS60110PWPG4, ensure that the input voltage is within the recommended range, use a high-precision resistor divider for the feedback network, and minimize noise and interference on the feedback path. Additionally, consider using a voltage reference IC (such as the TLV7031) to improve output voltage accuracy.
The TPS60110PWPG4 can handle input voltages up to 18V, but it is recommended to operate within the specified input voltage range of 3.5V to 15V for optimal performance and reliability.
The TPS60110PWPG4 has built-in overcurrent protection (OCP) and short-circuit protection (SCP) features. However, it is still recommended to add external protection components, such as fuses or current-limiting resistors, to prevent damage to the device and surrounding components in the event of an overcurrent or short-circuit condition.
The TPS60110PWPG4 is rated for operation up to 125°C, but it is recommended to derate the output current and power dissipation at higher temperatures to ensure reliable operation. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to reduce the device junction temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60110PWPG4 Overview

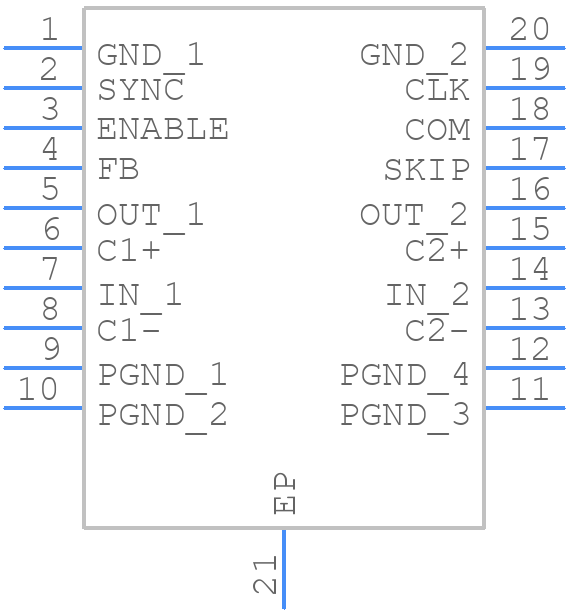

Use the download button to access the TPS60110PWPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
