SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
DOUBLER INVERTER
Switching Frequency-Max:
400 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS60111PWPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the TPS60111 datasheet, which includes guidelines for component placement, routing, and thermal considerations. Additionally, the TI website has a PCB layout tool that can help with designing a layout for the TPS60111PWPG4.
To ensure stability, follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to decouple the input and output pins with capacitors, and use a low-ESR output capacitor. If oscillation occurs, try adding a small resistor in series with the output capacitor or increasing the output capacitor value.
The TPS60111PWPG4 has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum rating can damage the device.
The TPS60111PWPG4 has an operating junction temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. Make sure to follow the thermal design guidelines in the datasheet and consider using a heat sink or thermal pad if the device will be operating in a high-temperature environment.
The output voltage of the TPS60111PWPG4 can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.2V), R1 is the feedback resistor, and R2 is the divider resistor. The datasheet provides a detailed explanation of the output voltage calculation and resistor selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60111PWPG4 Overview

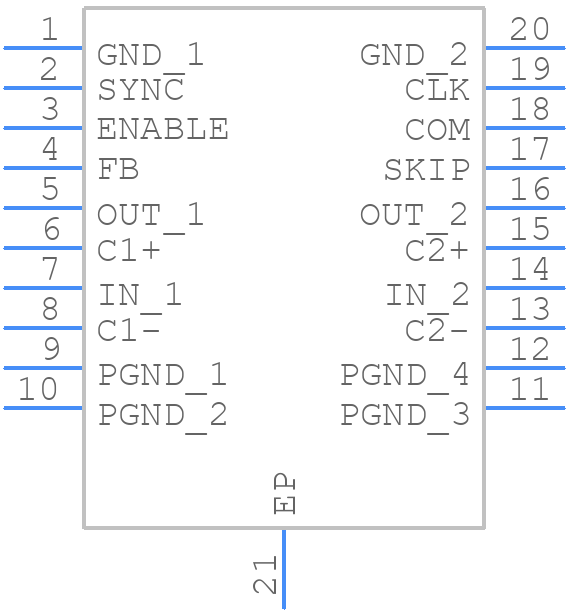

Use the download button to access the TPS60111PWPG4 schematic symbol, PCB footprint, and 3D model.
