TPS60120PWPR - Texas Instruments

Description: Charge Pump Switching Regulator IC Positive Fixed 3.3V 1 Output 200mA 20-PowerTSSOP (0.173", 4.40mm Width)

Download TPS60120PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

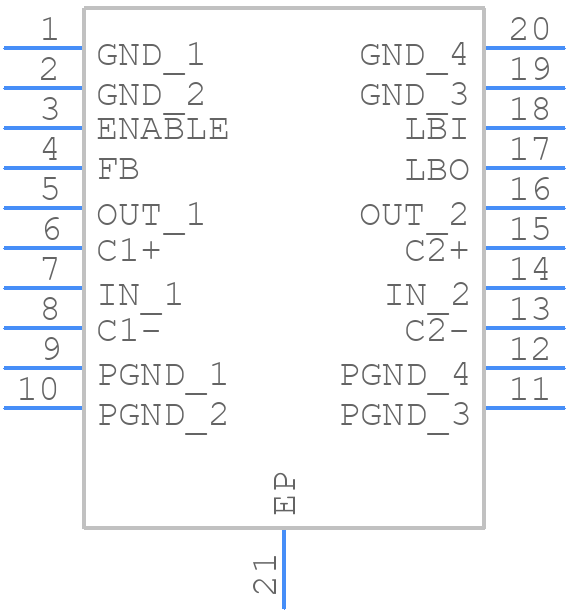

Symbol
TPS60120PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60120PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP(R-PDSO-G20)_-2
click to zoom
3D Models
TPS60120PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP(R-PDSO-G20)_-2
click to zoom

TPS60120PWPR Details

  • Manufacturer Part Number:

    TPS60120PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    2 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    450 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS60120PWPR Frequently Asked Questions (FAQs)

  • The recommended layout for the TPS60120PWPR involves placing the input and output capacitors close to the device, using short and wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A 10uF to 22uF ceramic capacitor is recommended. The capacitor values can be adjusted based on the specific application requirements.
  • The TPS60120PWPR can operate in an ambient temperature range of -40°C to 85°C. However, the device's performance and reliability may be affected at higher temperatures, and thermal considerations should be taken into account during design.
  • Yes, the TPS60120PWPR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, additional testing and validation may be required for specific applications.
  • To troubleshoot issues with the TPS60120PWPR, check the PCB layout and ensure that it meets the recommended layout guidelines. Verify that the input and output capacitors are properly selected and placed. Check for any noise or interference on the input or output lines. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.
