TPS60130PWPR - Texas Instruments

Description: 3 cell to regulated 5V, 300mA high efficiency charge pump with low battery comparator

Download TPS60130PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

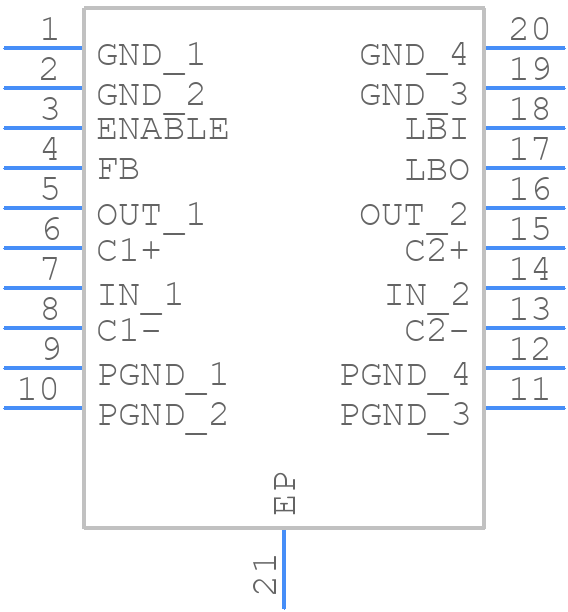

TPS60130PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60130PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G20)- HEIGHT1.2
click to zoom
3D Models
TPS60130PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G20)- HEIGHT1.2
click to zoom

TPS60130PWPR Details

  • Manufacturer Part Number:

    TPS60130PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.4 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    450 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS60130PWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS60130PWPR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage can be stabilized by adding a capacitor (e.g., 10nF) in parallel with the output resistor (R2) and a capacitor (e.g., 1uF) in parallel with the output capacitor (Cout).
  • The TPS60130PWPR can handle a maximum input voltage of 5.5V. Exceeding this voltage may damage the device. It's essential to ensure that the input voltage remains within the recommended operating range.
  • The TPS60130PWPR is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to ensure that the device operates within the recommended temperature range to maintain optimal performance and reliability.
  • The output voltage of the TPS60130PWPR can be calculated using the following formula: Vout = 1.2V x (1 + R2/R1), where R1 and R2 are the resistors in the feedback network. The output voltage can be adjusted by changing the values of R1 and R2.
