SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
DOUBLER INVERTER
Switching Frequency-Max:
450 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS60131PWPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layouts, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The choice of inductor depends on the specific requirements of your application, such as the desired output voltage, current, and frequency. TI provides a list of recommended inductors in the datasheet, but you can also use online inductor selection tools or consult with an applications engineer to find the best inductor for your design.
The TPS60131PWPG4 is rated for operation up to 85°C ambient temperature, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliable operation. Consult the datasheet for thermal derating curves and guidelines.
To ensure EMC, follow good design practices such as using a solid ground plane, keeping sensitive components away from the switching node, and using shielding or filtering to reduce EMI. TI also provides EMC guidelines and recommendations in the datasheet and application notes.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The value depends on the input voltage and current, but a typical value is 10uF to 22uF. Consult the datasheet for specific recommendations and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60131PWPG4 Overview

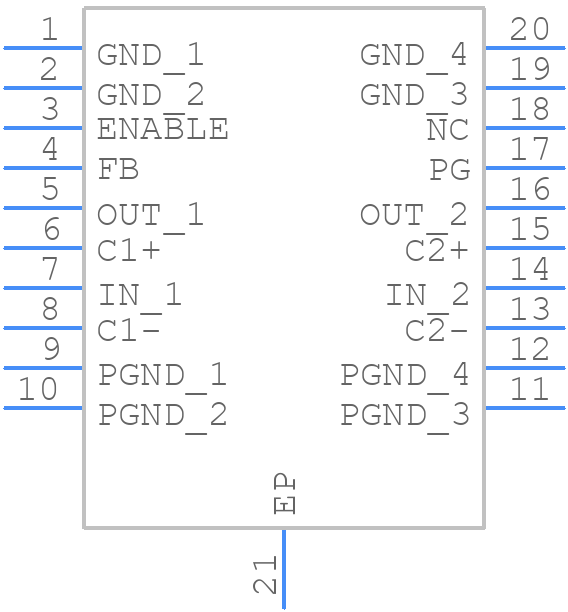

Use the download button to access the TPS60131PWPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
