TPS60140PWP - Texas Instruments

Description: Texas Instruments TPS60140PWP, Charge Pump Step Up, 5 V, 20-Pin, HTSSOP

Download TPS60140PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

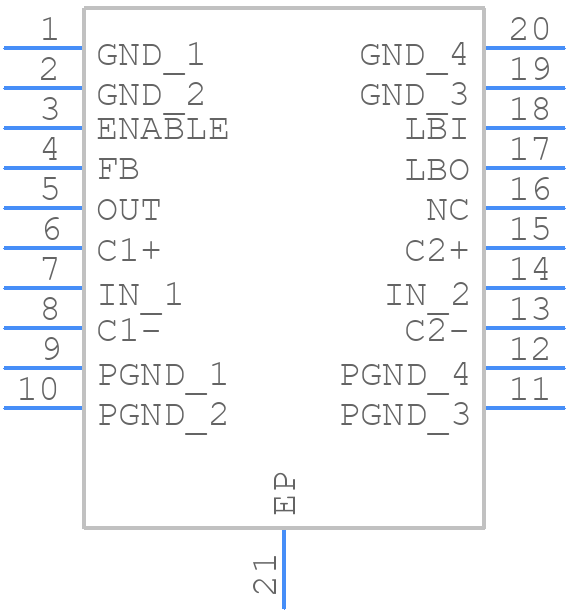

Symbol
TPS60140PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60140PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-20
click to zoom
3D Models
TPS60140PWP - Texas Instruments - 3D model - Small Outline Packages - HTSSOP-20
click to zoom

TPS60140PWP Details

  • Manufacturer Part Number:

    TPS60140PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE-SKIP

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    2 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    TRIPLER

  • Switching Frequency-Max:

    450 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS60140PWP Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the input and output capacitors placed close to the device. The device should be placed near the power source, and the output voltage should be routed away from the input. A 4-layer PCB with a solid ground plane is recommended. Refer to the TI application note 'TPS60140PWP Layout and Placement Guidelines' for more details.
  • To ensure stability, follow the recommended component values and layout guidelines. Use a minimum of 10uF input capacitance and 10uF output capacitance with low ESR. The output capacitor should be placed close to the device. Avoid using ceramic capacitors with high ESL, as they can cause oscillation. Additionally, ensure the device is properly decoupled from the power source.
  • The TPS60140PWP can handle a maximum input voltage of 5.5V. However, it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V to ensure reliable operation and minimize the risk of damage.
  • The TPS60140PWP is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If your application requires operation above 85°C, consider using a different device or implementing thermal management techniques to keep the device within its specified operating temperature range.
  • The output voltage of the TPS60140PWP is determined by the resistor divider network consisting of R1 and R2. The output voltage can be calculated using the formula: Vout = 1.2V x (1 + R2/R1). Ensure that the resistors are chosen to provide the desired output voltage within the specified range of 1.2V to 5.5V.
