SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
TRIPLER
Switching Frequency-Max:
450 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS60141PWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the TPS60141PWPR datasheet, which includes guidelines for component placement, routing, and thermal considerations. Additionally, the TI website provides a layout checklist and a PCB thermal design guide to help ensure optimal performance.
To optimize output voltage accuracy, ensure that the input voltage is within the recommended range, and the output voltage is set using a high-precision resistor divider network. Additionally, minimize noise and ripple on the input voltage, and use a low-ESR output capacitor to reduce output voltage droop.
The TPS60141PWPR can handle input voltages up to 5.5V, but it is recommended to operate within the recommended input voltage range of 3.3V to 5V for optimal performance and reliability.
The TPS60141PWPR is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent thermal shutdown. Consult the datasheet for thermal derating guidelines.
To troubleshoot issues with the TPS60141PWPR, start by verifying the input voltage, output voltage, and output current. Check for proper component placement, routing, and thermal considerations. Use an oscilloscope to measure output voltage ripple and noise, and consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60141PWPR Overview

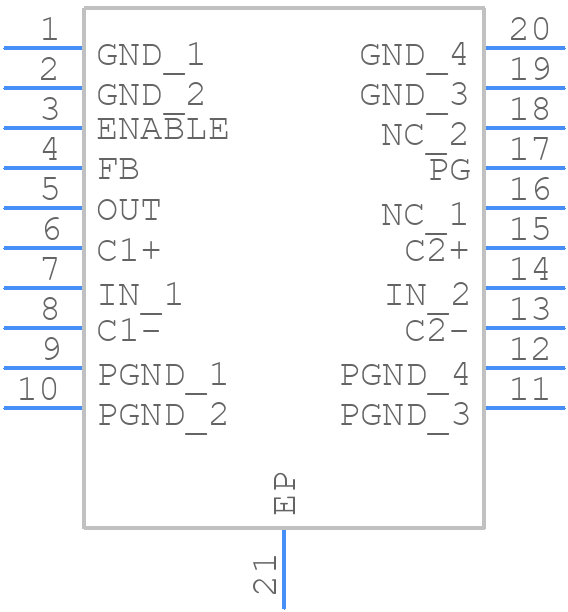

Use the download button to access the TPS60141PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
