Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the output current, output voltage, and switching frequency. A good starting point is to use the inductor selection guide provided by Texas Instruments, and then verify the inductor's performance using simulation tools or prototyping.
The TPS60200DGSG4 can operate up to a maximum ambient temperature of 85°C, but the junction temperature should not exceed 125°C. It's essential to ensure proper thermal design and heat sinking to prevent overheating.
Yes, the TPS60200DGSG4 is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
Troubleshooting issues with the TPS60200DGSG4 requires a systematic approach, including checking the PCB layout, component selection, and soldering quality. It's also recommended to use oscilloscopes and other debugging tools to identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60200DGSG4 Overview

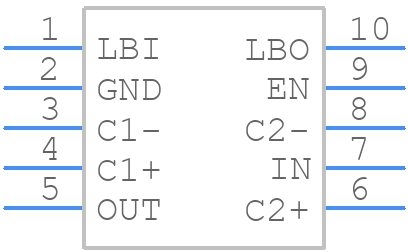

Use the download button to access the TPS60200DGSG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
