TPS60201DGS - Texas Instruments

Description: Regulated 3.3V 100mA, low ripple charge pump with power good indicator

Download TPS60201DGS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

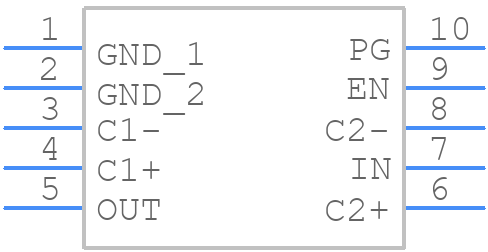

TPS60201DGS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60201DGS - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP
click to zoom
3D Models
TPS60201DGS - Texas Instruments - 3D model - Small Outline Packages - VSSOP
click to zoom

TPS60201DGS Details

  • Manufacturer Part Number:

    TPS60201DGS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    2.4 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS60201DGS Frequently Asked Questions (FAQs)

  • The recommended layout for the TPS60201DGS involves placing the input and output capacitors close to the device, using short and wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A 1-10uF ceramic capacitor is a good choice. The output capacitor should have a low ESR and be rated for the output voltage. A 1-10uF ceramic capacitor is a good choice. The capacitor values can be adjusted based on the specific application requirements.
  • The TPS60201DGS can handle an input voltage up to 5.5V. However, the recommended input voltage range is 3.3V to 5V for optimal performance.
  • Yes, the TPS60201DGS can be used in a battery-powered device. It has a low quiescent current of 1.5uA, making it suitable for battery-powered applications. However, the device should be turned off when the battery voltage falls below the minimum input voltage to prevent damage.
  • To ensure stability, the input and output capacitors should be placed close to the device, and the PCB layout should be designed to minimize parasitic inductance and capacitance. Additionally, the device should be operated within the recommended input and output voltage ranges, and the output should not be overloaded.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS60201DGS Overview

Use the download button to access the TPS60201DGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
