The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
To ensure the TPS60204DGS operates within its SOA, ensure that the input voltage, output current, and ambient temperature are within the recommended operating conditions specified in the datasheet. Additionally, ensure that the device is properly thermally managed and that the PCB layout is designed to minimize thermal resistance.
The TPS60204DGS can deliver up to 200mA of output current, depending on the input voltage and output voltage settings. However, the maximum output current may be limited by the device's thermal performance and the PCB's thermal design.
The TPS60204DGS is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. Ensure that the device is properly thermally managed and that the PCB is designed to minimize thermal resistance to ensure reliable operation in high-temperature environments.
To optimize the PCB layout for the TPS60204DGS, ensure that the input and output capacitors are placed close to the device, and that the PCB traces are designed to minimize inductance and resistance. Additionally, ensure that the thermal vias are placed under the device to improve heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60204DGS Overview

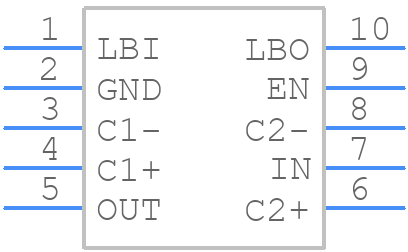

Use the download button to access the TPS60204DGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
