The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
To ensure the TPS60210DGSR operates within its SOA, ensure that the input voltage, output current, and ambient temperature are within the recommended operating conditions specified in the datasheet. Additionally, ensure that the device is properly thermally managed and that the PCB layout is designed to minimize thermal resistance.
The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled and output voltage is regulated. When the EN pin is pulled low, the regulator is disabled and the output voltage is turned off.
The TPS60210DGSR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that the device is properly thermally managed and that the operating conditions are within the recommended specifications.
To minimize noise and ensure good regulation, follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the regulator. Additionally, ensure that the input and output capacitors are placed close to the regulator and that the PCB traces are short and wide.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60210DGSR Overview

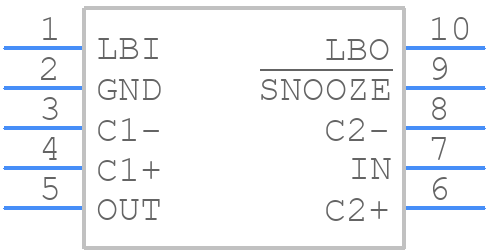

Use the download button to access the TPS60210DGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
