TPS60212DGS - Texas Instruments

Description: Regulated 3.3V 50mA, low battery detector, low-ripple charge pump with ultra low operating current

Download TPS60212DGS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

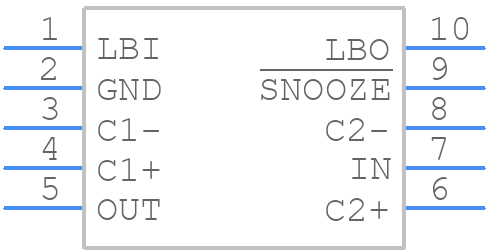

TPS60212DGS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60212DGS - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
TPS60212DGS - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

TPS60212DGS Details

  • Manufacturer Part Number:

    TPS60212DGS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    2.4 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.05 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS60212DGS Frequently Asked Questions (FAQs)

  • A good layout practice is to keep the input and output capacitors close to the device, and to use a solid ground plane to reduce noise. Additionally, it is recommended to keep the feedback resistors close to the device and to use a separate analog ground plane to reduce noise coupling.
  • The output capacitor should be chosen based on the output voltage and current requirements. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to ensure stability.
  • The maximum input voltage that the TPS60212DGS can handle is 18V. Exceeding this voltage may cause damage to the device.
  • To ensure stability, it is recommended to follow the layout guidelines, use the recommended output capacitor, and choose the right feedback resistors. Additionally, it is recommended to add a small capacitor (typically 10nF) between the FB pin and GND to improve stability.
  • The maximum output current that the TPS60212DGS can deliver is 2A. Exceeding this current may cause the device to overheat or fail.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS60212DGS Overview

Use the download button to access the TPS60212DGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
