The recommended input capacitor value is 1-10uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure stable operation and minimize noise.
Follow the recommended PCB layout guidelines in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and loops. Additionally, consider using a shielded inductor and placing the device away from noise sources.
The maximum ambient temperature range for the TPS60213DGS is -40°C to 85°C, but the device can operate up to 125°C with derating. Consult the datasheet for more information on thermal derating.
Yes, the TPS60213DGS can be used in battery-powered devices. To ensure low quiescent current, enable the shutdown pin (EN) and use a low-IQ mode, such as the device's built-in low-power mode or an external low-power mode. Additionally, consider using a low-VIN voltage and optimizing the output voltage and current to minimize power consumption.
To troubleshoot issues with the TPS60213DGS, start by checking the PCB layout and ensuring that it follows the recommended guidelines. Next, verify that the input and output capacitors are properly selected and placed. Use an oscilloscope to measure the input and output voltages and currents, and check for signs of oscillation or instability. Consult the datasheet and application notes for more troubleshooting tips and guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60213DGS Overview

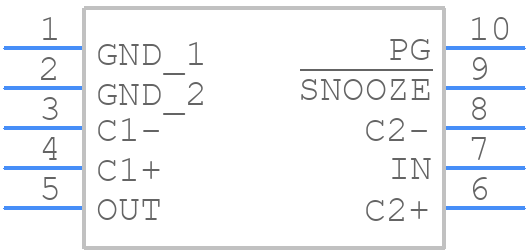

Use the download button to access the TPS60213DGS schematic symbol, PCB footprint, and 3D model.
