TPS60230RGTR - Texas Instruments

Description: 5-Channel, Current-regulated 125-mA Charge Pump for White LED Backlight in 3x3 QFN

Download TPS60230RGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

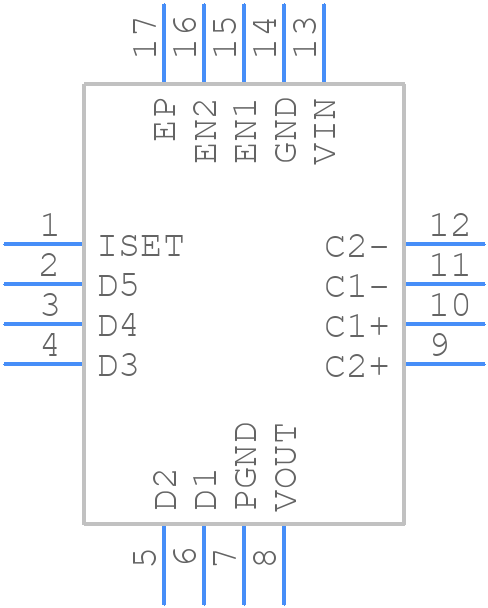

TPS60230RGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60230RGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016A9-1
click to zoom
3D Models
TPS60230RGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016A9-1
click to zoom

TPS60230RGTR Details

  • Manufacturer Part Number:

    TPS60230RGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Efficiency (Main Output):

    90%

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    6.5 V

  • Output Voltage-Min:

    2.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1250 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS60230RGTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS60230RGTR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the TPS60230RGTR output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the device. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (e.g. 100nF) in parallel with the output capacitor.
  • The TPS60230RGTR can handle a maximum input voltage of 18V. However, it is recommended to operate the device within the recommended input voltage range of 2.7V to 15V to ensure optimal performance and reliability.
  • The output voltage of the TPS60230RGTR can be calculated using the following formula: Vout = 1.2V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. The output voltage can be adjusted by changing the ratio of R1 and R2.
  • The TPS60230RGTR can deliver a maximum output current of 300mA. However, the output current may be limited by the input voltage, output voltage, and the internal resistance of the device.
