The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce input voltage ripple and improve output voltage regulation.
To ensure the TPS60240DGKR operates within its SOA, ensure that the input voltage, output current, and ambient temperature are within the recommended operating conditions specified in the datasheet. Additionally, ensure that the device is properly thermally managed and that the PCB layout is designed to minimize thermal resistance.
The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it is pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.
The output voltage of the TPS60240DGKR can be calculated using the following formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (1.2V), and R1 and R2 are the resistors used to set the output voltage. The datasheet provides a detailed example of how to calculate the output voltage.
The maximum output current of the TPS60240DGKR is 2A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. The datasheet provides a detailed description of the output current capabilities of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60240DGKR Overview

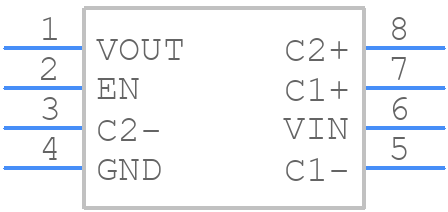

Use the download button to access the TPS60240DGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
