Texas Instruments provides a recommended layout and placement guide in the TPS60241DGKRG4 datasheet, which includes guidelines for component placement, routing, and thermal considerations. Additionally, the TI website offers a PCB layout checklist and a thermal design guide to help ensure optimal performance.
The selection of the output capacitor depends on the specific application requirements, such as output voltage, current, and ripple. Texas Instruments recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF. The datasheet provides a detailed guide for selecting the output capacitor, including a calculation for the minimum required capacitance.
The TPS60241DGKRG4 has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum input voltage can damage the device.
To ensure stability, follow the recommended layout and placement guidelines, use a suitable output capacitor, and ensure that the input voltage is within the recommended operating range. Additionally, the datasheet provides a stability analysis guide, which includes a calculation for the minimum required output capacitance to ensure stability.
The power dissipation of the TPS60241DGKRG4 depends on the input voltage, output voltage, and output current. The datasheet provides a power dissipation calculation formula. To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and follow the recommended thermal design guide provided by Texas Instruments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60241DGKRG4 Overview

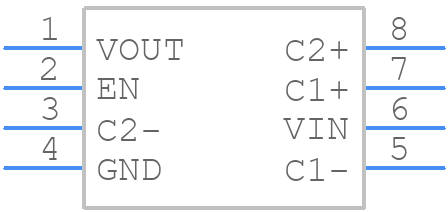

Use the download button to access the TPS60241DGKRG4 schematic symbol, PCB footprint, and 3D model.
