Texas Instruments provides a recommended layout and placement guide in the TPS60242DGKT datasheet, which includes guidelines for component placement, routing, and thermal considerations. Additionally, the TI website provides a layout guide document (SLUU323) that provides more detailed information on layout and placement best practices.
The selection of the output capacitor depends on the specific application requirements, such as output voltage, output current, and ripple voltage. Texas Instruments recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF. The datasheet provides a detailed explanation of the output capacitor selection process, and TI also provides a capacitor selection tool on their website.
The TPS60242DGKT has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum input voltage can damage the device.
To ensure stability, it is essential to follow the recommended layout and placement guidelines, use a suitable output capacitor, and ensure that the input voltage is within the recommended operating range. Additionally, the datasheet provides a detailed explanation of the stability criteria and how to calculate the required output capacitor value to ensure stability.
The power dissipation of the TPS60242DGKT depends on the input voltage, output voltage, and output current. The datasheet provides a formula to calculate the power dissipation, which is Pd = (Vin - Vout) x Iout + (Vin x Iq), where Iq is the quiescent current. The maximum power dissipation rating is 1.5W.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60242DGKT Overview

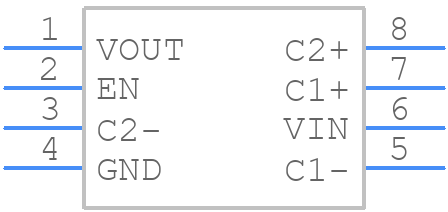

Use the download button to access the TPS60242DGKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
