The recommended input capacitor value is 1uF to 10uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure stable operation and minimize noise.
Ensure good thermal design and layout practices, such as providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Also, consider using a thermal pad or heat sink to dissipate heat.
The maximum output current of the TPS60300DGS is 300mA, but it's recommended to derate the output current based on the ambient temperature and the device's thermal design to ensure reliable operation.
Follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas. Also, consider using shielding or a metal can to reduce EMI radiation.
Yes, the TPS60300DGS is suitable for battery-powered devices due to its low quiescent current (IQ) of 15uA, which helps to extend battery life. However, ensure that the input voltage is within the recommended range and that the device is properly shut down when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS60300DGS Overview

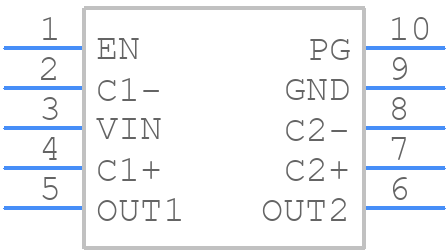

Use the download button to access the TPS60300DGS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
