TPS60313DGSR - Texas Instruments

Description: Single-Cell to 3-V, 20-mA Ultra-Low Quiescent Current Charge Pump

Download TPS60313DGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

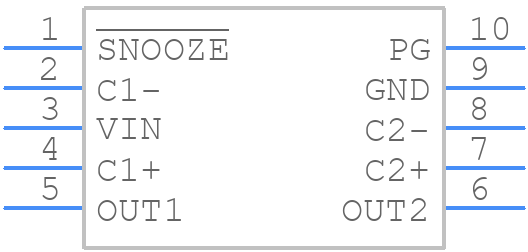

TPS60313DGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60313DGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)_1
click to zoom
3D Models
TPS60313DGSR - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)_1
click to zoom

TPS60313DGSR Details

  • Manufacturer Part Number:

    TPS60313DGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 3V

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    1.8 V

  • Input Voltage-Min:

    0.9 V

  • Input Voltage-Nom:

    1 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.02 A

  • Output Voltage-Max:

    3 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    900 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS60313DGSR Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure stable operation and minimize noise.
  • Follow the recommended PCB layout guidelines in the datasheet, keeping the input and output capacitors close to the device, and using a solid ground plane to reduce noise and EMI. Also, avoid routing sensitive signals near the inductor and ensure a clear return path for the high-frequency currents.
  • The maximum ambient temperature range for the TPS60313DGSR is -40°C to 85°C, but the device can operate up to 125°C with derating. Refer to the thermal derating curve in the datasheet for more information.
  • Yes, the TPS60313DGSR is suitable for battery-powered devices due to its low quiescent current (IQ) of 15uA, which helps to extend battery life. However, ensure that the input voltage is within the recommended range and that the device is properly bypassed to minimize noise and voltage drops.
  • The output voltage of the TPS60313DGSR is set by the resistor divider network (R1 and R2) connected to the FB pin. Use the formula: VOUT = 1.2V x (1 + R2/R1) to calculate the output voltage. Ensure that the resistors are of high precision and low tolerance to maintain accurate output voltage regulation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS60313DGSR Overview

Use the download button to access the TPS60313DGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60, or try a keyword search, such as Switching Regulator or Controllers
