TPS60500DGSRG4 - Texas Instruments

Description: Switching Voltage Regulators 250-mA Adj Hi-Eff Step-Dwn Chrg Pump

Download TPS60500DGSRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

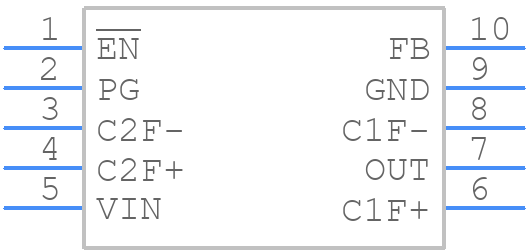

Symbol
TPS60500DGSRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS60500DGSRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
TPS60500DGSRG4 - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

TPS60500DGSRG4 Details

  • Manufacturer Part Number:

    TPS60500DGSRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.25 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    1200 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS60500DGSRG4 Frequently Asked Questions (FAQs)

  • TI recommends a compact layout with the input and output capacitors placed close to the device, and the feedback resistors placed close to the FB pin. A solid ground plane and a separate power plane for the input and output are also recommended to minimize noise and ensure optimal performance.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage drops and ensure stable operation. For output capacitors, select ones with low ESR and high capacitance to filter out noise and ensure stable output voltage. TI recommends using ceramic or tantalum capacitors with X5R or X7R dielectrics.
  • The TPS60500DGSRG4 can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure optimal performance and reliability.
  • The output voltage of the TPS60500DGSRG4 can be adjusted by changing the ratio of the feedback resistors (R1 and R2) connected to the FB pin. Use the formula Vout = Vref * (1 + R2/R1) to calculate the desired output voltage, where Vref is the internal reference voltage (1.2V).
  • The typical startup time for the TPS60500DGSRG4 is around 1ms, but this can vary depending on the input voltage, output voltage, and load conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS60500DGSRG4 Overview

Use the download button to access the TPS60500DGSRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS60, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
