The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure stable operation and minimize input voltage ripple.
To minimize noise and EMI, it is recommended to follow a star-ground configuration, keep the input and output capacitors close to the device, and use a solid ground plane. Additionally, avoid routing sensitive signals near the inductor and ensure that the layout is symmetrical to reduce radiation.
The maximum ambient temperature range for the TPS61002DGSR is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it is recommended to operate within a range of -20°C to 85°C for optimal performance.
Yes, the TPS61002DGSR is suitable for battery-powered devices due to its low quiescent current (IQ) of 12uA, which helps to extend battery life. However, it is essential to consider the device's power consumption and battery life requirements when designing the system.
The output voltage of the TPS61002DGSR can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.21V), and R1 and R2 are the resistors connected to the FB pin. The recommended values for R1 and R2 are 10kΩ and 2.2kΩ, respectively, which result in an output voltage of 3.3V.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61002DGSR Overview

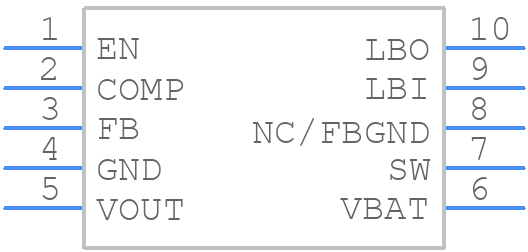

Use the download button to access the TPS61002DGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
