ALSO OPERATES IN ADJUSTABLE MODE FROM 1.8V TO 5.5V
Analog IC - Other Type:
BATTERY CHARGE CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
1.8 V
Input Voltage-Nom:
2.4 V
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4.5 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
1.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
700 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS61030PWPG4 Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS61030PWPG4 is 12V, but it's recommended to keep it below 10V to ensure reliable operation and to prevent damage to the internal components.
When choosing an inductor for the TPS61030PWPG4, consider the inductor's value, saturation current, and DC resistance. A good starting point is to use an inductor with a value between 1uH and 10uH, a saturation current of at least 1A, and a DC resistance of less than 100mΩ. You can also use the Texas Instruments' WEBENCH tool to help you select the right inductor.
The minimum input capacitance required for the TPS61030PWPG4 is 10uF, but it's recommended to use a higher value, such as 22uF or 47uF, to ensure stable operation and to filter out noise and ripple.
The TPS61030PWPG4 is rated for operation up to 125°C, but it's recommended to derate the output current and voltage as the temperature increases to prevent overheating and ensure reliable operation. You can use the thermal derating curves in the datasheet to determine the maximum output current and voltage at a given temperature.
To minimize noise and EMI in the TPS61030PWPG4, follow good PCB layout practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and separating the high-current paths from the low-current paths. You can also use shielding and filtering components, such as ferrite beads and common-mode chokes, to reduce EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61030PWPG4 Overview

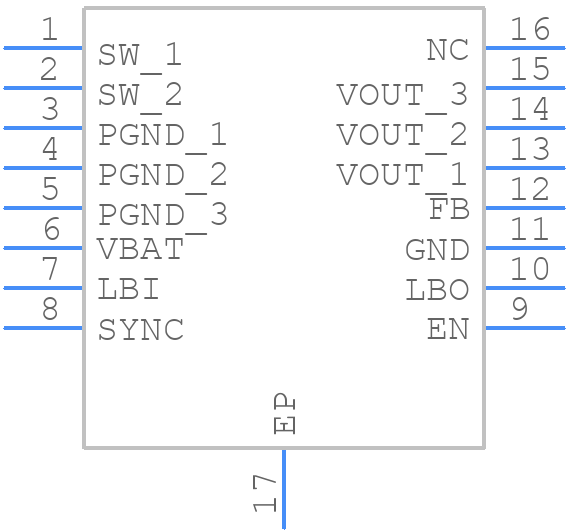

Use the download button to access the TPS61030PWPG4 schematic symbol, PCB footprint, and 3D model.
