SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
700 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS61031PWP Frequently Asked Questions (FAQs)
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to ensure stable operation and minimize input voltage ripple.
To minimize EMI and noise, it is recommended to follow a star-ground configuration, keep the input and output capacitors close to the device, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW pin) away from sensitive nodes.
The maximum ambient temperature range for the TPS61031PWP is -40°C to 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly to ensure reliable operation.
Yes, the TPS61031PWP is suitable for battery-powered devices. It has a low quiescent current of 12uA, which makes it suitable for battery-powered applications. However, the device's efficiency may vary depending on the battery voltage and load current.
The output voltage of the TPS61031PWP can be calculated using the following formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.2V), R1 is the feedback resistor, and R2 is the divider resistor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61031PWP Overview

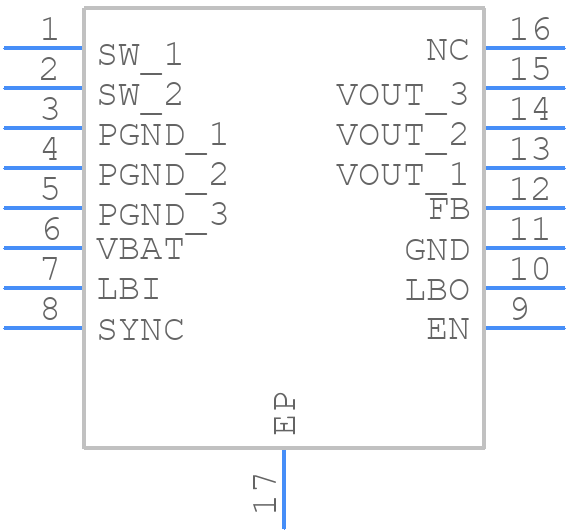

Use the download button to access the TPS61031PWP schematic symbol, PCB footprint, and 3D model.
