A good PCB layout for the TPS61031RSAR involves placing the input and output capacitors close to the IC, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure the TPS61031RSAR operates within its SOA, calculate the maximum allowed input voltage, output current, and power dissipation based on the application's requirements. Then, select the appropriate input and output capacitors, and ensure the PCB layout provides adequate thermal dissipation.
When selecting capacitors for the TPS61031RSAR, consider the capacitor's equivalent series resistance (ESR), voltage rating, and capacitance value. A low-ESR capacitor with a high voltage rating and suitable capacitance value is recommended to ensure stable operation and minimize noise.
To troubleshoot issues with the TPS61031RSAR, start by verifying the input voltage, output voltage, and output current. Check the PCB layout for any noise coupling or thermal issues. Use an oscilloscope to measure the output voltage ripple and noise. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Operating the TPS61031RSAR at high ambient temperatures can reduce its reliability and lifespan. To mitigate this, ensure good airflow around the device, use a heat sink if necessary, and consider derating the output current and voltage to reduce power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61031RSAR Overview

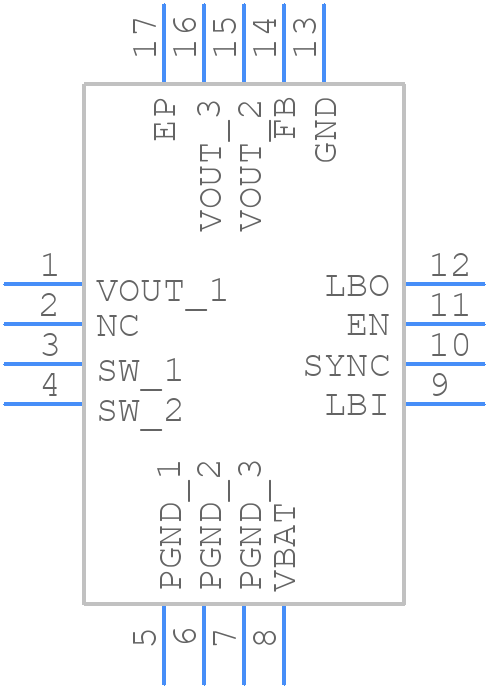

Use the download button to access the TPS61031RSAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
