Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layouts, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The datasheet provides a list of recommended inductors, but you can also use the following guidelines: choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (typically between 1-10uH). You can also use online inductor selection tools or consult with the inductor manufacturer.
The datasheet specifies an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. As a general rule, the ambient temperature should be at least 20°C below the maximum junction temperature to ensure reliable operation.
Yes, the TPS61042DRBRG4 is a robust device that can operate in high-vibration environments, but you should ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress. You may also need to add additional mechanical support or vibration dampening measures depending on the specific application.
Start by checking the input voltage, output voltage, and current draw to ensure they are within the specified ranges. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to check for voltage ripple, noise, or oscillations. Consult the datasheet and application notes for troubleshooting guidelines, and consider seeking support from Texas Instruments or a qualified engineer.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS61042DRBRG4 Overview

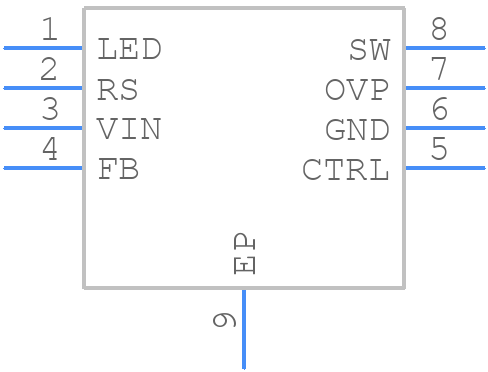

Use the download button to access the TPS61042DRBRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
