TPS61043DRBR - Texas Instruments

Description: LED Lighting Drivers TPS61043: Const Crnt LED Driver

Download TPS61043DRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

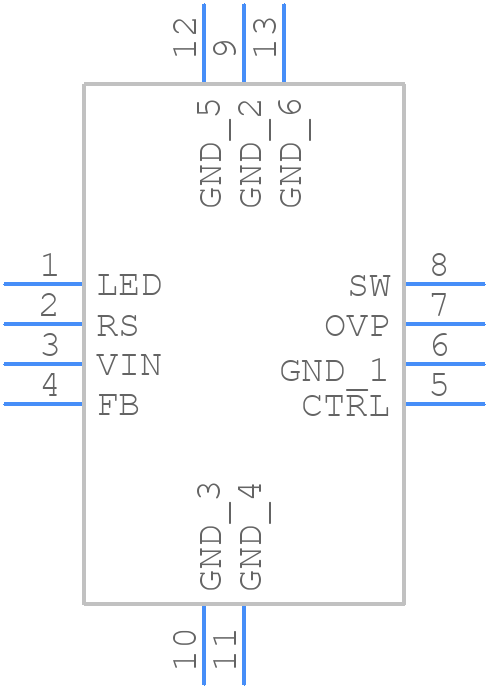

TPS61043DRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61043DRBR - Texas Instruments PCB footprint - Other - Other - DRB Package
click to zoom
3D Models
TPS61043DRBR - Texas Instruments - 3D model - Other - DRB Package
click to zoom

TPS61043DRBR Details

  • Manufacturer Part Number:

    TPS61043DRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • fmax-Min:

    1 MHz

TPS61043DRBR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS61043DRBR is 12V, but it's recommended to keep it below 10V for optimal performance and to prevent damage to the device.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value. A minimum capacitance of 10uF is recommended, and the capacitor should be placed as close to the output pin as possible.
  • The minimum input capacitance required for the TPS61043DRBR is 1uF, but it's recommended to use a higher capacitance value (e.g., 4.7uF) to ensure stable operation and to filter out noise and ripple.
  • The TPS61043DRBR is rated for operation up to 85°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heat-sinked and that the ambient temperature is within the specified range.
  • The output voltage of the TPS61043DRBR can be calculated using the following formula: Vout = Vfb * (1 + R1/R2), where Vfb is the feedback voltage (1.21V), R1 is the resistance between the output and the feedback pin, and R2 is the resistance between the feedback pin and ground.
