TPS61100PWR - Texas Instruments

Description: Conv DC-DC 0.8V to 3.3V Step Up Dual-Out 1.5V to 5.5V/0.9V to 3.6V 1.2A/0.27A 0.6W 20-Pin TSSOP T/R

Download TPS61100PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

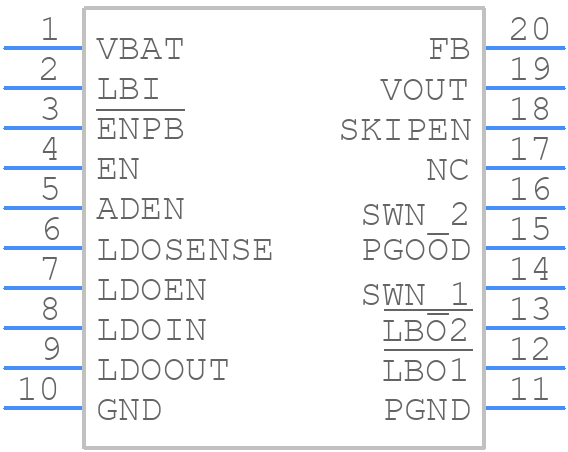

TPS61100PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61100PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
TPS61100PWR - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

TPS61100PWR Details

  • Manufacturer Part Number:

    TPS61100PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.3 V

  • Input Voltage-Min:

    0.8 V

  • Input Voltage-Nom:

    1.8 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    800 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS61100PWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS61100PWR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. Texas Instruments provides an inductor selection guide in the TPS61100PWR datasheet, which includes a list of recommended inductors and their corresponding characteristics.
  • The TPS61100PWR is rated for operation up to 85°C ambient temperature, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal management of the system. It is recommended to follow the thermal design guidelines provided in the datasheet to ensure reliable operation.
  • The TPS61100PWR has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the VIN pin. The overcurrent threshold can be set by selecting the appropriate resistor value for the ROC pin. The datasheet provides more information on how to implement overcurrent protection.
  • The recommended input capacitor type is a ceramic capacitor with a value of 10uF to 22uF. The input capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
