Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low ESR. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VIN pin and GND can help to filter out high-frequency noise and prevent oscillations.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the IC.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. The recommended inductor value and type are carefully selected to ensure optimal performance, so it's best to stick with the recommended values.
To troubleshoot issues, start by checking the input voltage, output voltage, and current consumption using an oscilloscope or multimeter. Verify that the component values and PCB layout match the recommended values and layout. Check for any signs of overheating, and ensure that the IC is properly soldered and connected.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS61150ADRCT Overview

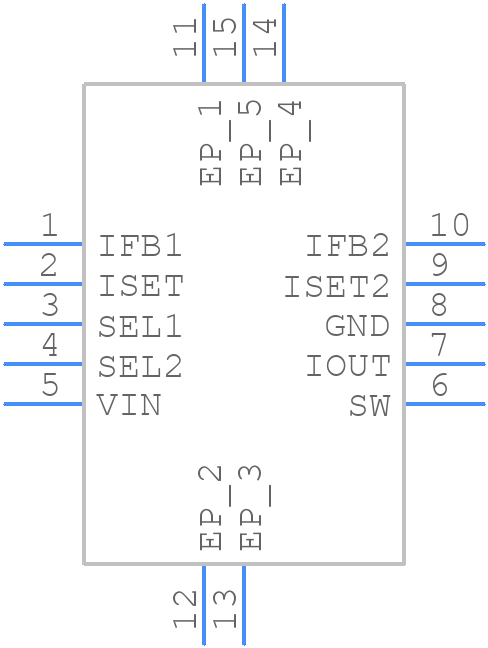

Use the download button to access the TPS61150ADRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Display Drivers
