TPS61165DRVRG4 - Texas Instruments

Description: LED DRVR 10Segment 3.3V/5V/9V/12V/15V 6-Pin WSON EP T/R

Download TPS61165DRVRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

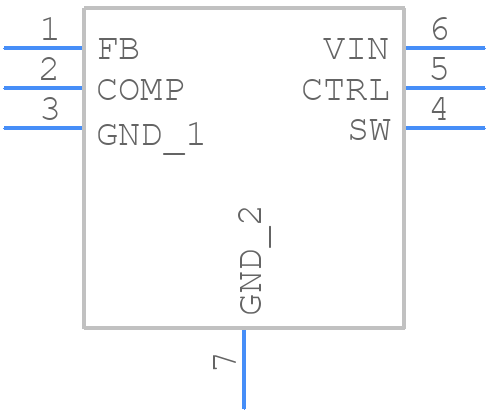

TPS61165DRVRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61165DRVRG4 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A height=0.8
click to zoom
3D Models
TPS61165DRVRG4 - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A height=0.8
click to zoom

TPS61165DRVRG4 Details

  • Manufacturer Part Number:

    TPS61165DRVRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    10

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.6 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

  • fmax-Min:

    1.2 MHz

TPS61165DRVRG4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS61165DRVRG4 involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the loop area of the power traces to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
  • When selecting an inductor for the TPS61165DRVRG4, consider the inductor's value, saturation current, and DC resistance. A good starting point is to use an inductor with a value between 1.5 μH and 3.3 μH, and a saturation current rating above the peak current of the converter. TI provides a list of recommended inductors in the datasheet.
  • The TPS61165DRVRG4 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal design guidelines for more information.
  • The TPS61165DRVRG4 has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and GND. The value of the resistor determines the overcurrent threshold. Consult the datasheet for more information on how to set the overcurrent threshold.
  • Yes, the TPS61165DRVRG4 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a qualified process. Consult the datasheet and TI's quality and reliability documentation for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS61165DRVRG4 Overview

Use the download button to access the TPS61165DRVRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61, or try a keyword search, such as Display Drivers
