A good PCB layout for the TPS61177ARGRR involves placing the input and output capacitors close to the IC, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended PCB layout in the datasheet and application notes.
Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. TI recommends using ceramic or polymer capacitors with X5R or X7R dielectrics. The datasheet provides guidelines for capacitor selection.
The TPS61177ARGRR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal design guidelines for more information.
To ensure stability, follow the recommended PCB layout, choose the right output capacitor, and add a small ceramic capacitor (e.g., 10nF) between the VIN and EN pins. Additionally, ensure the input voltage is within the recommended range and the output is properly decoupled.
The TPS61177ARGRR is rated for a maximum output current of 1.5A. However, the actual output current depends on the input voltage, output voltage, and ambient temperature. Consult the datasheet for more information on output current capability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61177ARGRR Overview

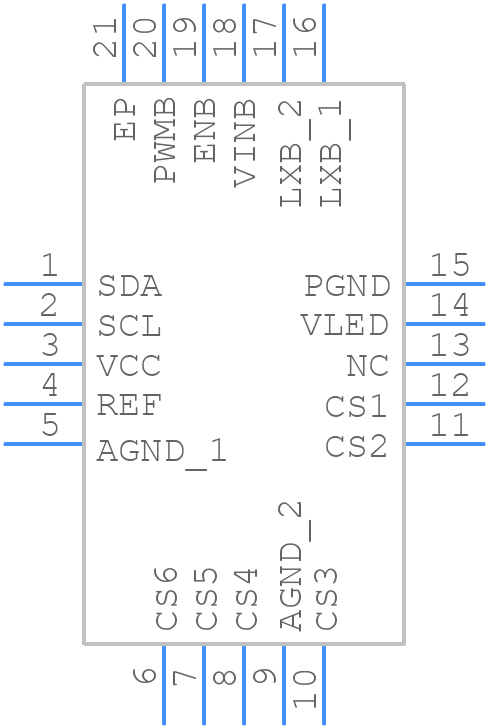

Use the download button to access the TPS61177ARGRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Display Drivers
