TPS61178RNWR - Texas Instruments

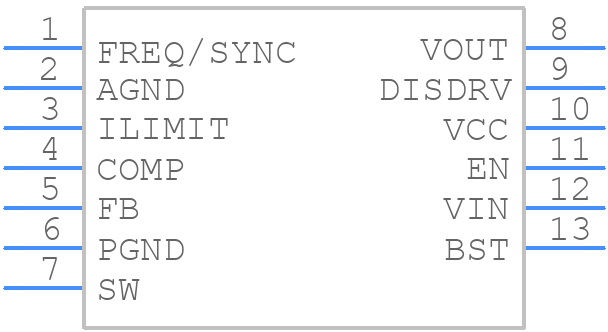

TPS61178RNWR Details

• Manufacturer Part Number:

  TPS61178RNWR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2017-02-26

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  VOUT RANGE=(4.5-20 VOLT)

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE FREQUENCY MODULATION

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  2.7 V

• Input Voltage-Nom:

  6 V

• JESD-30 Code:

  R-PBCC-N13

• JESD-609 Code:

  e4

• Length:

  3.5 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  13

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  9.4 A

• Output Voltage-Max:

  20 V

• Output Voltage-Min:

  4.5 V

• Output Voltage-Nom:

  16 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  2200 kHz

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
