A good PCB layout for the TPS61181RTET involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended output capacitor selection guidelines, use a low-ESR capacitor, and ensure the output voltage is within the recommended range. Additionally, the input voltage should be stable and within the recommended range.
The TPS61181RTET is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
Yes, the TPS61181RTET is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the TPS61181RTET, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and current waveforms. If the issue persists, consult the datasheet and application notes or contact Texas Instruments' support team for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61181RTET Overview

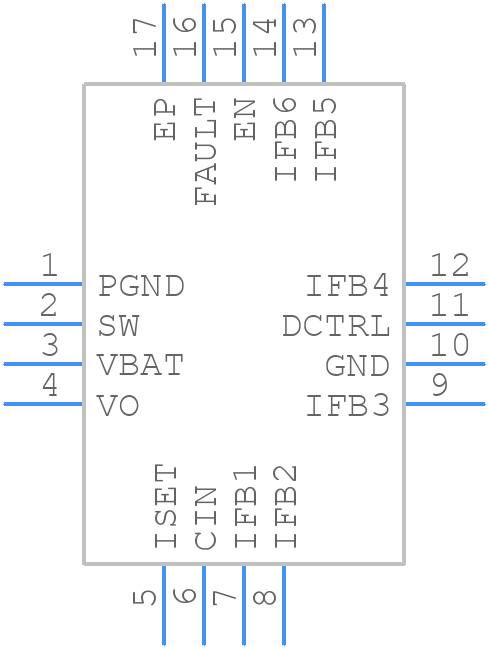

Use the download button to access the TPS61181RTET schematic symbol, PCB footprint, and 3D model.
