Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. A good starting point is to use X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the input voltage, and an ESR of less than 100 mΩ.
The TPS61185RGER has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. A good rule of thumb is to derate the ambient temperature by 10°C to 20°C to ensure reliable operation.
To ensure stability, follow the recommended component values and PCB layout guidelines, and make sure the input and output capacitors are properly selected. Additionally, a small ceramic capacitor (e.g., 10 nF) can be added between the VIN and EN pins to improve stability.
The minimum input voltage required for the TPS61185RGER to operate is 2.5 V, but it's recommended to use an input voltage of at least 3 V to ensure reliable operation and to account for any voltage drops in the system.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS61185RGER Overview

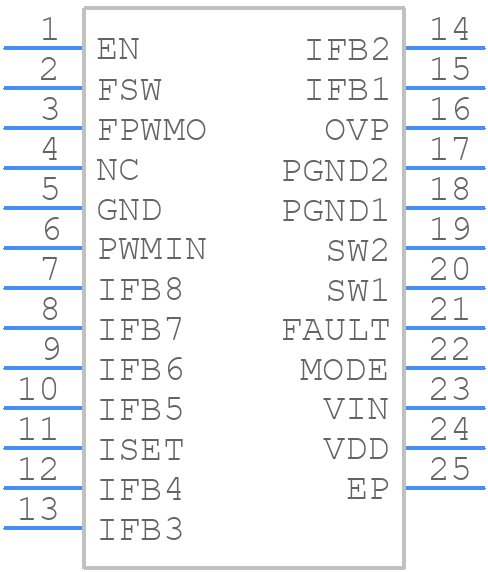

Use the download button to access the TPS61185RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Display Drivers
