SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
45 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
12 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
fmax-Min:
2.2 MHz
TPS61194PWPR Frequently Asked Questions (FAQs)
A good PCB layout for the TPS61194PWPR involves placing the input and output capacitors close to the IC, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended PCB layout in the datasheet and application notes.
Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. TI recommends using ceramic or polymer capacitors with X5R or X7R dielectrics. The datasheet provides guidelines for capacitor selection.
The TPS61194PWPR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal design guidelines for more information.
To ensure stability, follow the recommended PCB layout, choose the right input and output capacitors, and ensure the output voltage is within the specified range. Additionally, add a small ceramic capacitor (e.g., 10nF) between the VIN and EN pins to filter noise and prevent oscillation.
The TPS61194PWPR is capable of delivering up to 2A of output current. However, the maximum output current depends on the input voltage, output voltage, and ambient temperature. Consult the datasheet for more information on output current capability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61194PWPR Overview

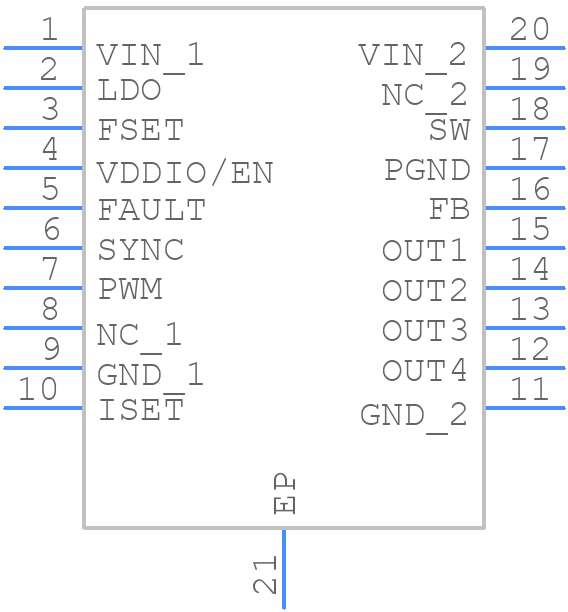

Use the download button to access the TPS61194PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Display Drivers
