TPS61194PWPRQ1 - Texas Instruments

Description: Low-EMI, High-Performance 4-Channel LED Driver for Automotive Lighting

Download TPS61194PWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

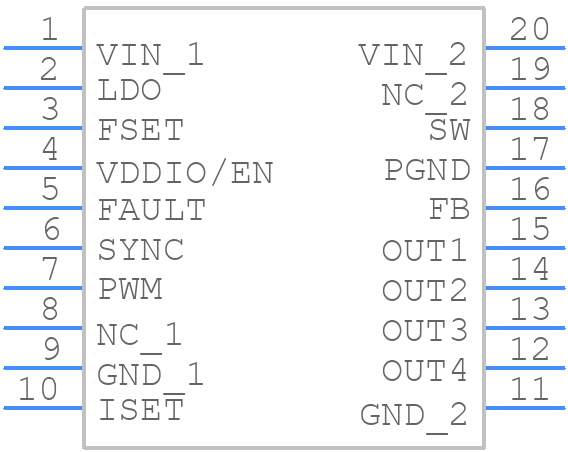

TPS61194PWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61194PWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
TPS61194PWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

TPS61194PWPRQ1 Details

  • Manufacturer Part Number:

    TPS61194PWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-20

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max:

    45 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.4 mm

  • fmax-Min:

    2.2 MHz

TPS61194PWPRQ1 Frequently Asked Questions (FAQs)

  • The maximum input voltage is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure stability, make sure to use the recommended output capacitor values and types, and follow the layout guidelines provided in the datasheet. Additionally, consider using a soft-start circuit to reduce inrush current and prevent output voltage overshoot.
  • The maximum output current is 2A, but it's recommended to derate the output current based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.
  • Make sure to provide adequate heat sinking and thermal management for the device, especially in high-power applications. Use thermal pads, heat sinks, and thermal interfaces as needed to keep the junction temperature below 125°C.
  • Yes, the TPS61194PWPRQ1 is qualified for automotive and high-reliability applications, but make sure to follow the recommended design and testing guidelines to ensure compliance with relevant standards and regulations.
