TPS61199PWPR - Texas Instruments

Description: White LED Driver for LCD Monitors Backlighting

Download TPS61199PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

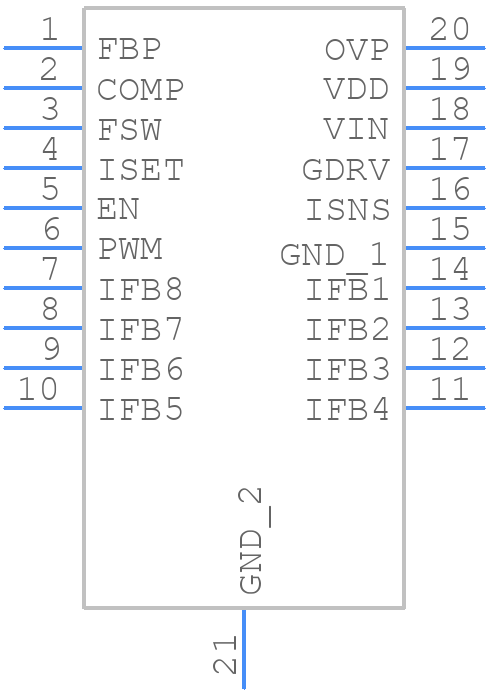

TPS61199PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61199PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G20)
click to zoom
3D Models
TPS61199PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G20)
click to zoom

TPS61199PWPR Details

  • Manufacturer Part Number:

    TPS61199PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    0.8 MHz

TPS61199PWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS61199PWPR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to choose the right output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value. A minimum capacitance value of 10uF is recommended, and the ESR should be less than 100mΩ.
  • The TPS61199PWPR can handle a maximum input voltage of 18V, but it is recommended to operate the device within the specified input voltage range of 3.5V to 15V for optimal performance and reliability.
  • The output voltage of the TPS61199PWPR can be calculated using the following formula: Vout = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. The output voltage range is from 0.8V to 15V.
  • The TPS61199PWPR can deliver a maximum output current of 2A, but the actual output current may be limited by the input voltage, output voltage, and the thermal performance of the device.
