TPS61202DSCT - Texas Instruments

Description: Switching Voltage Regulators 0.3V Inp Vltg Boost Cnvrtr

Download TPS61202DSCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

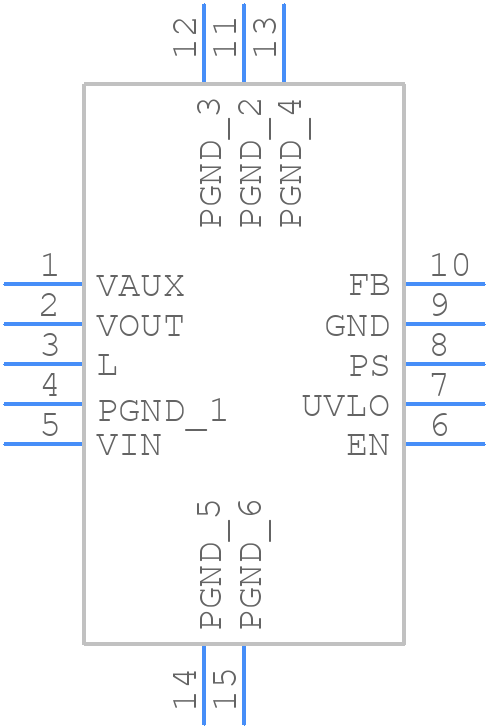

Symbol
TPS61202DSCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61202DSCT - Texas Instruments PCB footprint - Other - Other - DSC0010J_2022
click to zoom
3D Models
TPS61202DSCT - Texas Instruments - 3D model - Other - DSC0010J_2022
click to zoom

TPS61202DSCT Details

  • Manufacturer Part Number:

    TPS61202DSCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.3 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1650 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS61202DSCT Frequently Asked Questions (FAQs)

  • The recommended layout for the TPS61202DSCT involves placing the input and output capacitors close to the device, using short and wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. The output capacitor should have a low ESR and be rated for the output voltage. A 10uF to 22uF ceramic capacitor is recommended for the input, and a 10uF to 47uF ceramic capacitor is recommended for the output.
  • The TPS61202DSCT can operate in an ambient temperature range of -40°C to 85°C. However, the device's performance and reliability may be affected at higher temperatures, and thermal derating may be necessary.
  • To ensure stability, the output capacitor should have a low ESR, and the output voltage should be decoupled with a 10nF to 100nF ceramic capacitor. The input voltage should also be decoupled with a 10nF to 100nF ceramic capacitor. Additionally, the PCB layout should be designed to minimize parasitic inductance and capacitance.
  • The TPS61202DSCT can handle an input voltage up to 15V. However, the device's performance and reliability may be affected at higher input voltages, and the input voltage should be limited to the recommended range of 2.7V to 12V for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS61202DSCT Overview

Use the download button to access the TPS61202DSCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61, or try a keyword search, such as Switching Regulator or Controllers
